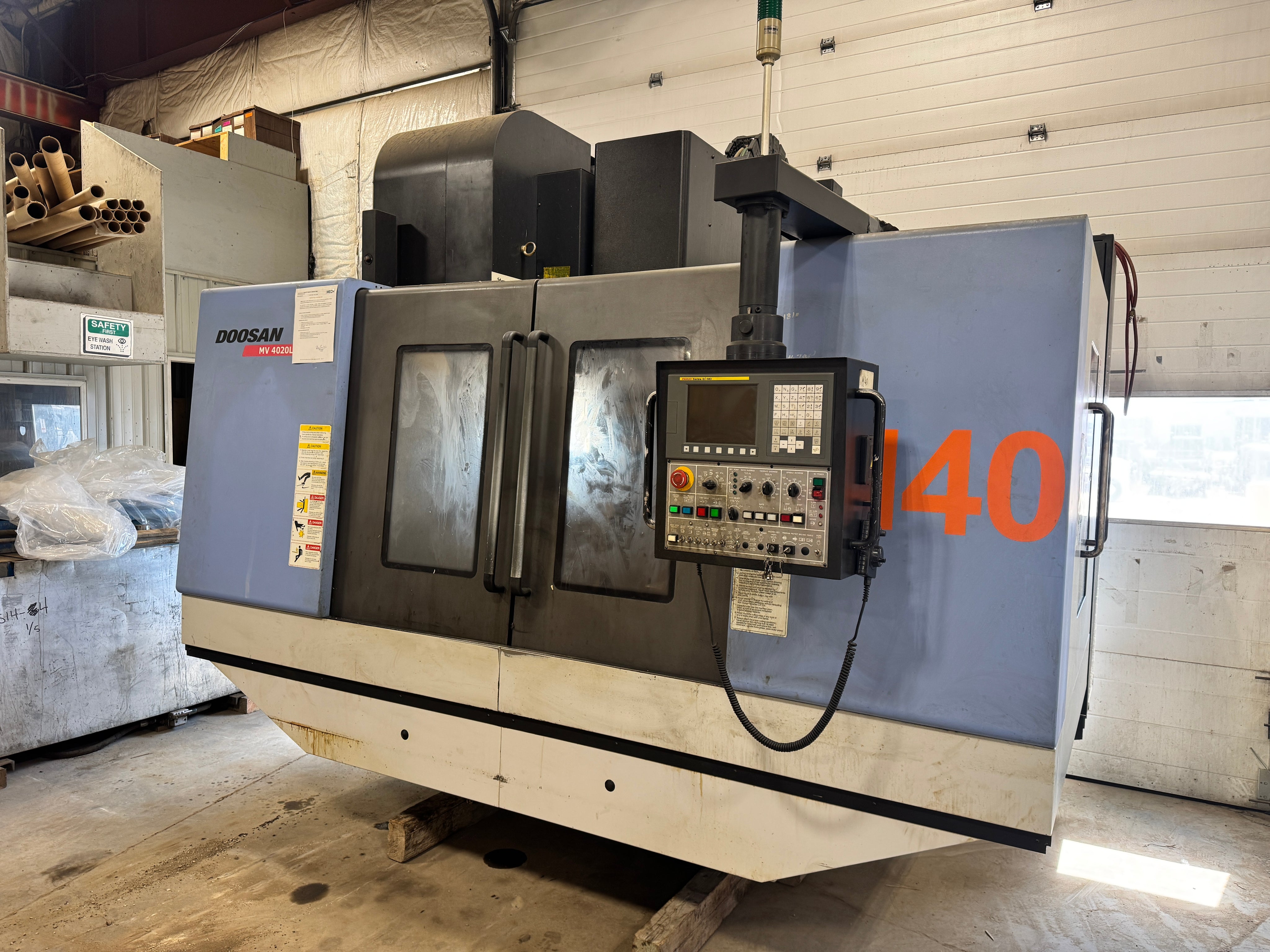

The Doosan MV-4020L is a CNC vertical machining center equipped with Fanuc Oi-MC control, CAT40 spindle, 30 tool automatic tool changer, 4th axis rotary table, probe system and chip conveyor.
DOOSAN MV-4020L
Vertical Machining Center
Serial Number: NM5100384
Year: 2007
Manufactured: 2007.12
Control: Fanuc Series Oi-MC
Made in Korea
CAPACITY
X-Axis Travel: 40.2” (1020 mm)
Y-Axis Travel: 20.1” (510 mm)
Z-Axis Travel: 24.6” (625 mm)
TABLE
Table Size: 47.2” × 19.7” (1200 × 500 mm)
Max Table Load: 1760 lbs (800 kg)
SPINDLE
Spindle Taper: CAT40 / BT40
Spindle Speed: 8000 RPM
Main Motor: Approx. 20 HP
TOOL CHANGER

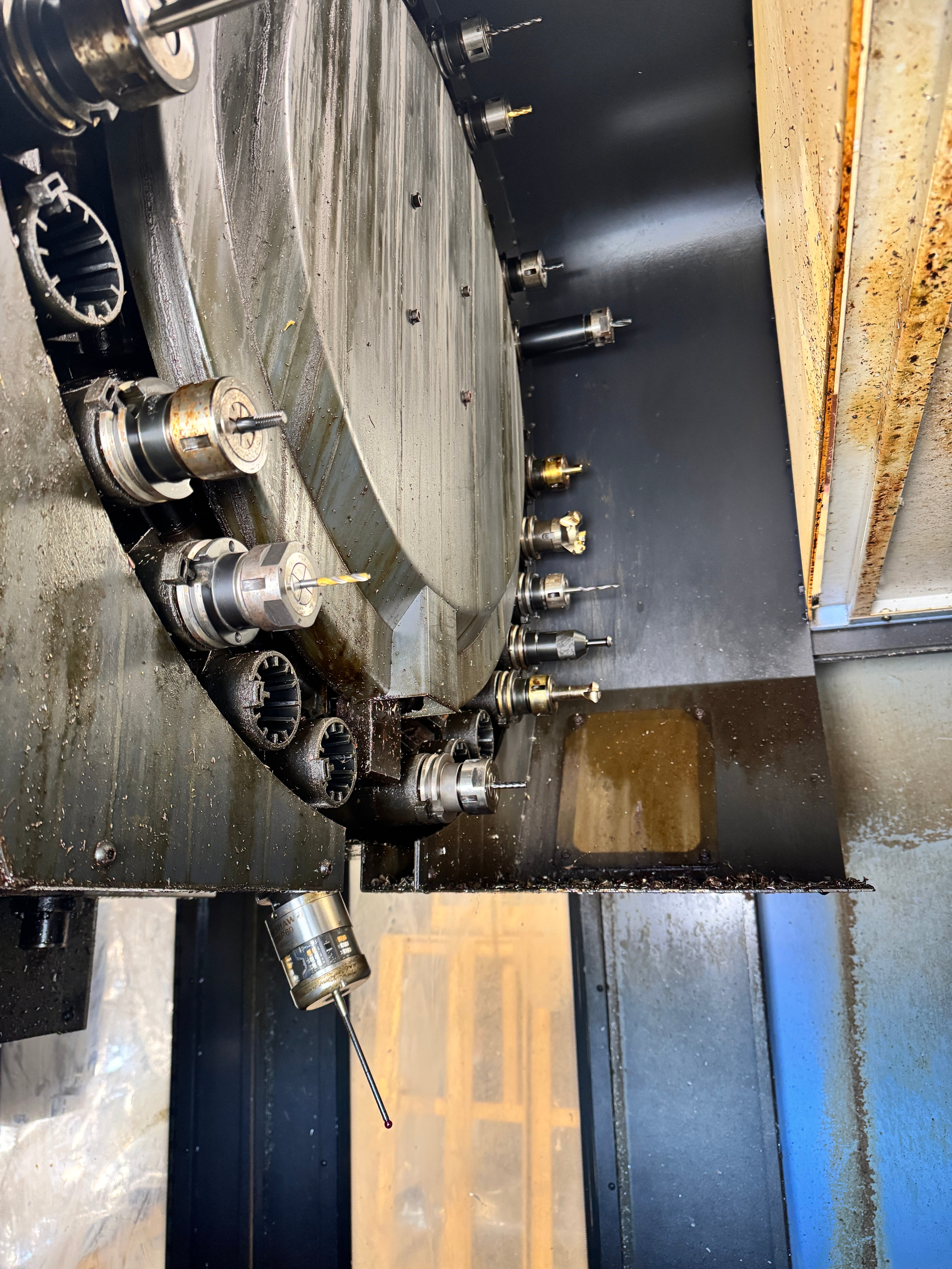

ATC Capacity: 30 Tools
RAPID TRAVERSE
X/Y Rapid Traverse: 30 m/min
Z Rapid Traverse: 24 m/min

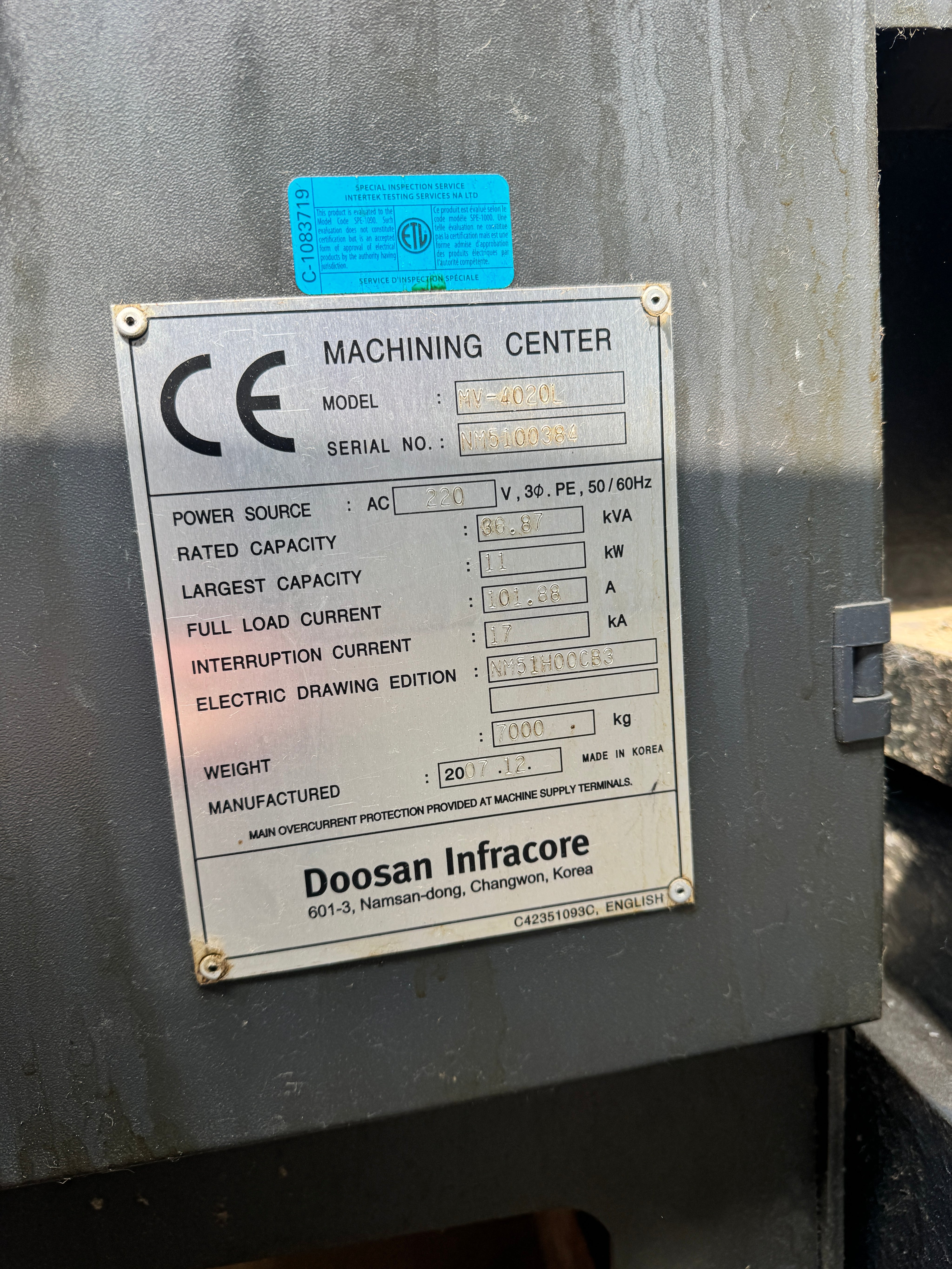

ELECTRICAL
Power Source: AC 220V / 3 Phase / 50-60Hz
Rated Capacity: 36.87 kVA
Largest Capacity: 11 kW
Full Load Current: 101.88 A
EQUIPPED WITH

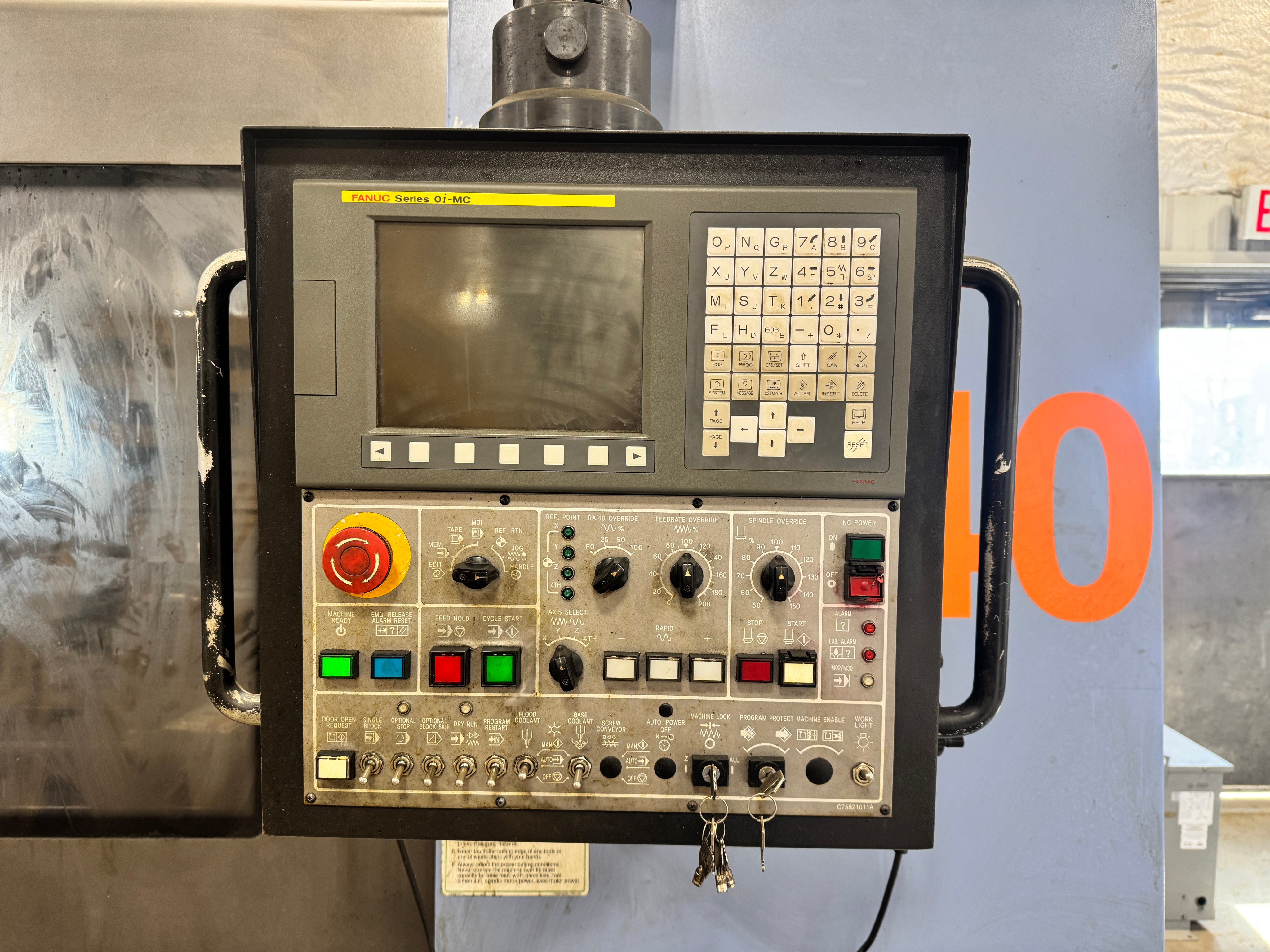

Fanuc Oi-MC Control

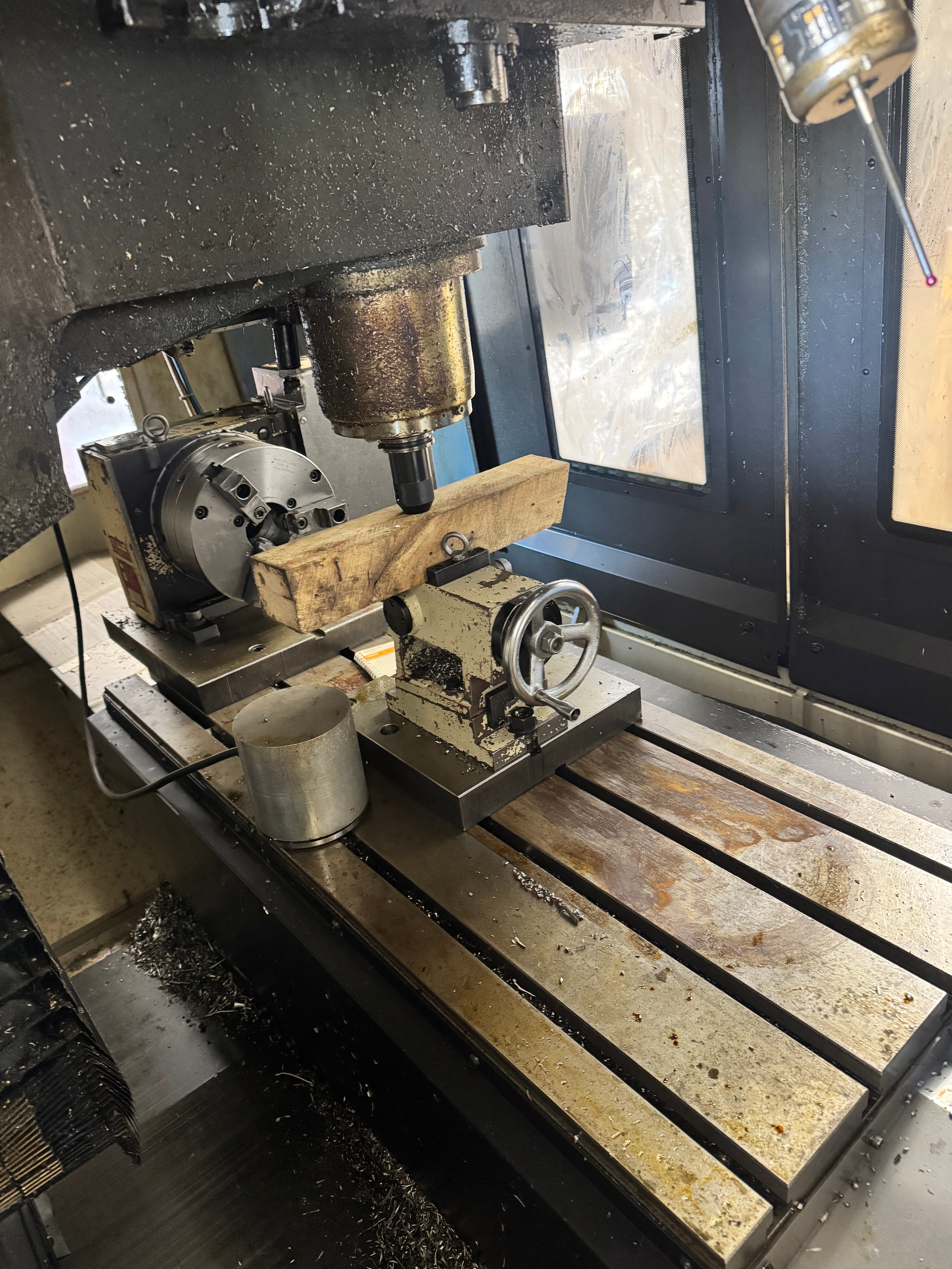

4th Axis Rotary Table
Chip Conveyor
Coolant System
DIMENSIONS & WEIGHT
Approx. Dimensions: 118” × 94” × 110”
(3000 × 2400 × 2800 mm)
Machine Weight: Approx. 15,400 lbs (7000 kg)
