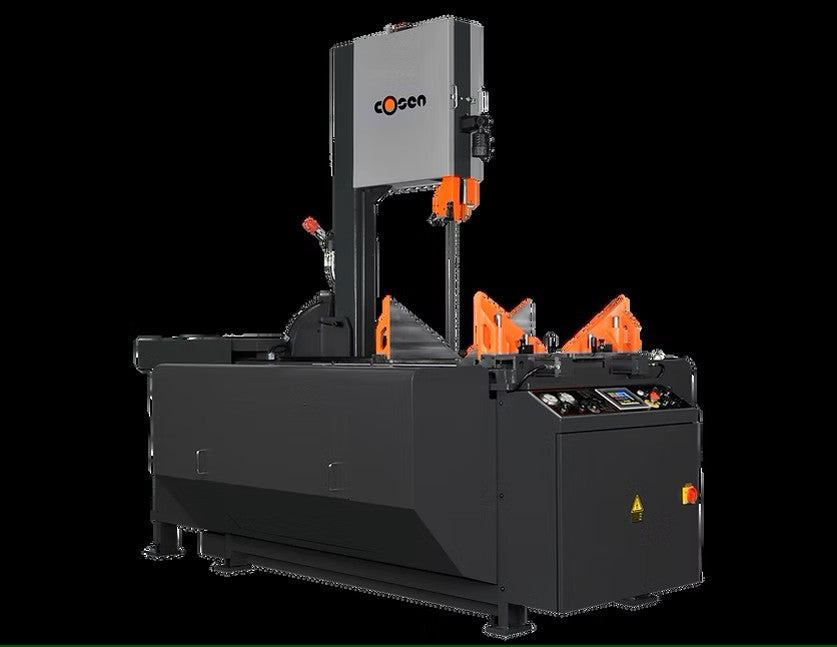

COSEN V-2026NC Vertical Mitre Band Saw

The COSEN V-2026NC is a heavy-duty vertical mitre band saw designed for precision metal cutting in structural steel, fabrication, and industrial production environments. Engineered for versatility and reliability, this machine provides accurate mitre cutting in both left and right directions while maintaining excellent cutting stability.

Featuring NC control, variable blade speed, hydraulic operation, and a powerful 7.5 HP blade motor, the V-2026NC is ideal for demanding production applications requiring flexibility, repeatability, and efficient cutting performance.

Its rigid machine frame, dual-direction mitre capability, and large cutting envelope make it suitable for fabrication shops, steel service centers, and heavy industrial manufacturing operations.

Specifications

Model: COSEN V-2026NC
Type: Vertical Mitre Band Saw

Capacity Angles
0° / 45° Left / 60° Left / 45° Right / 60° Right

Capacity (0° Blade Cant)
20" x 28.3"
20" x 19.5"
20" x 13"
20" x 18.3"
20" x 11.2"

Capacity (5° Blade Cant)
20" x 26"
20" x 17.9"
20" x 12"
20" x 16.5"
20" x 9.8"

Blade
Blade Speed: 66 – 328 FPM
Blade Size: 17' 1.9" x 1.25" x .042"

Motor
Blade Motor: 7.5 HP
Coolant Motor: 1/4 HP

Tank Capacity
Coolant Tank Capacity: 34 gal
Hydraulic Tank Capacity: 22.4 gal

Dimensions & Weight
Workbed Height: 40.6"
Machine Weight: 4,520 lbs
Floorspace (L x W x H): 102" x 98.4" x 102.3"
