Features

• The swivel saw head allows miter cutting from 0 degrees to 60 degrees
• Hydraulic cylinder plus precision ground hinge support
• Hardened worm gear for durability
• Hard-stops at, 45, and 60 degrees for quick angle setup
• Blade drive equipped with a variable pulley system
• Adjustable flood coolant system
• Motor-driven, synchronized wire blade brush
• Carbide blade guides and bearing provides additional blade support

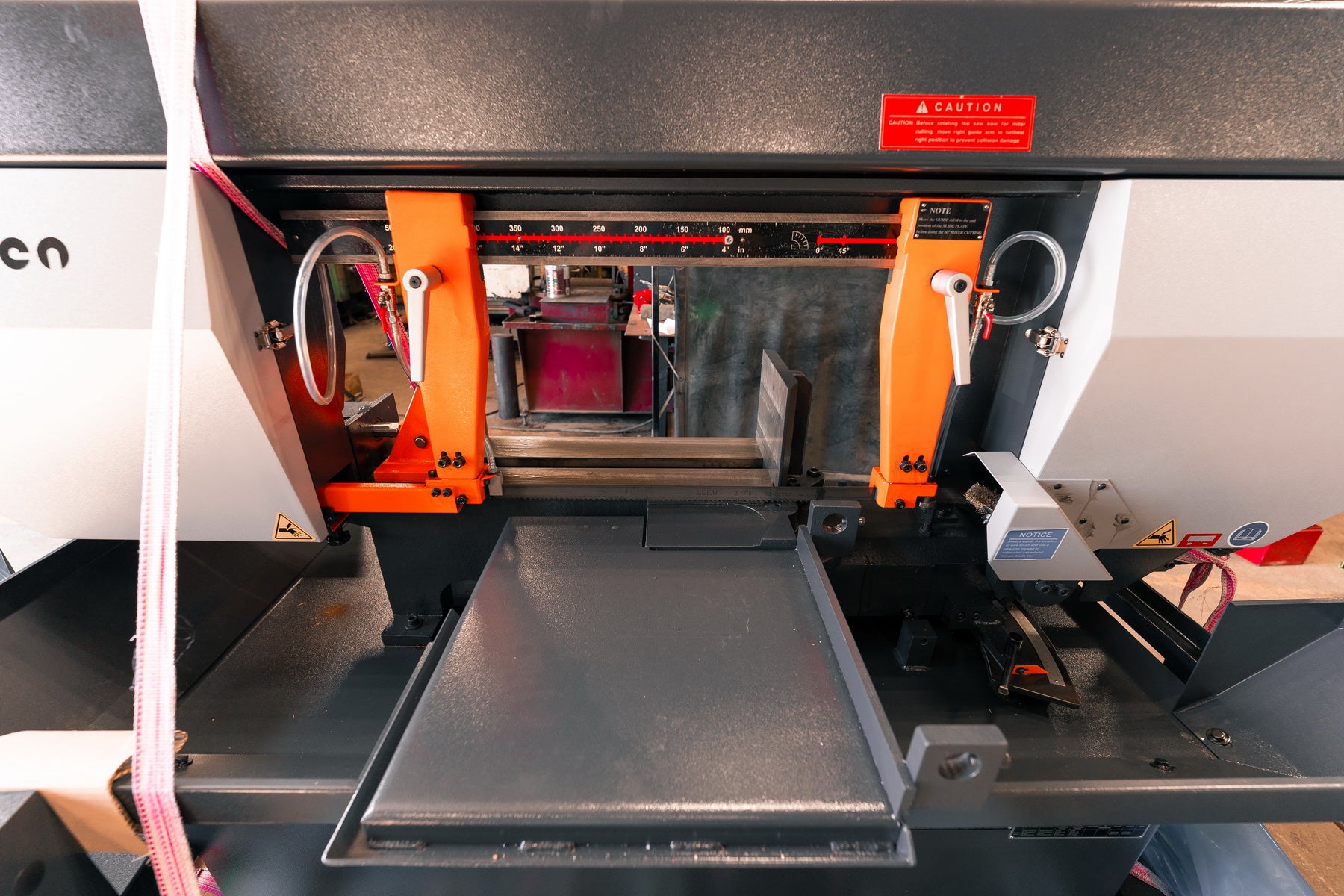

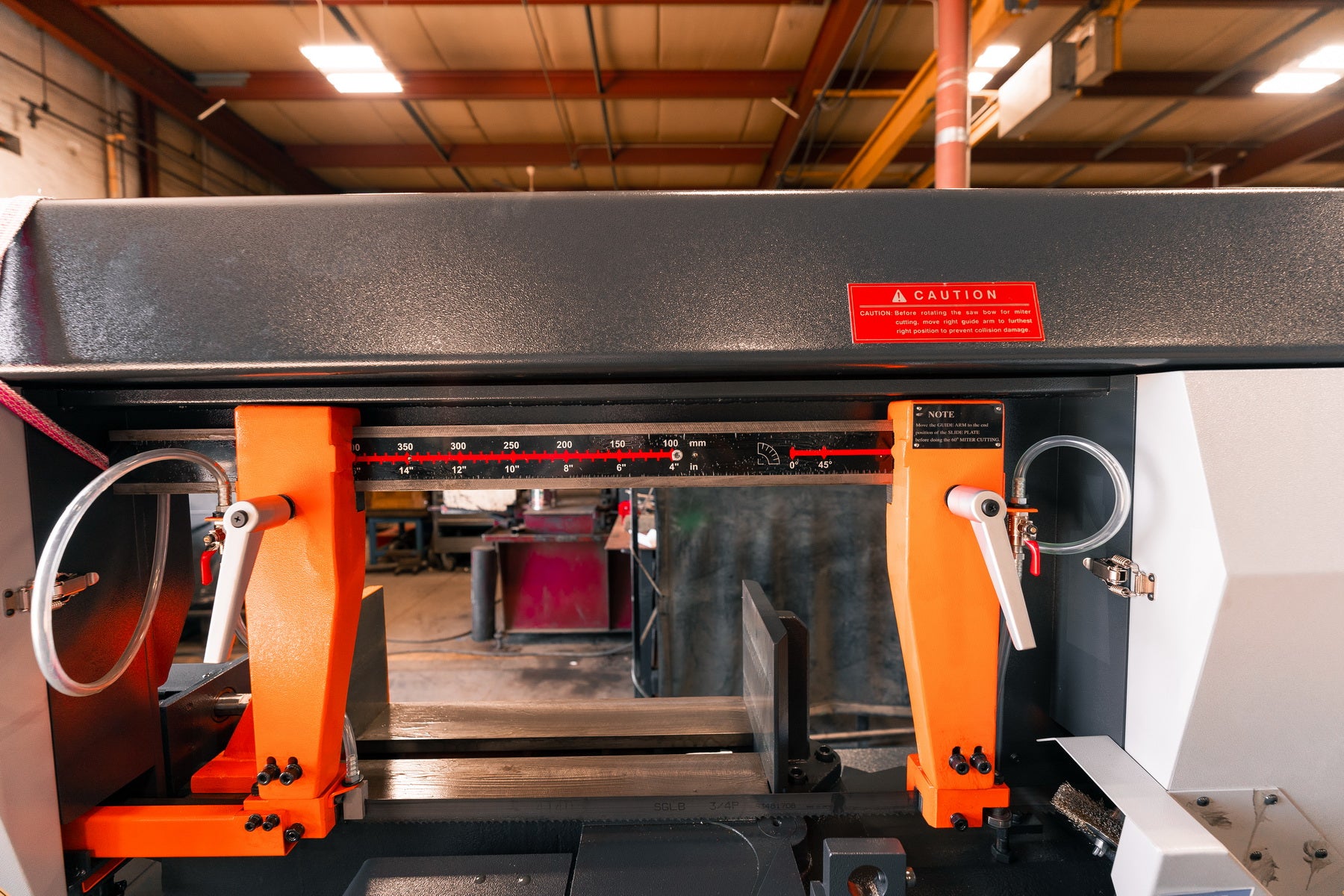

• Rigid cast-iron guide arms
• Cast-iron hydraulic vise
• Adjustable down feed control
• Adjustable material stop
• Saw head automatically raises after each cut

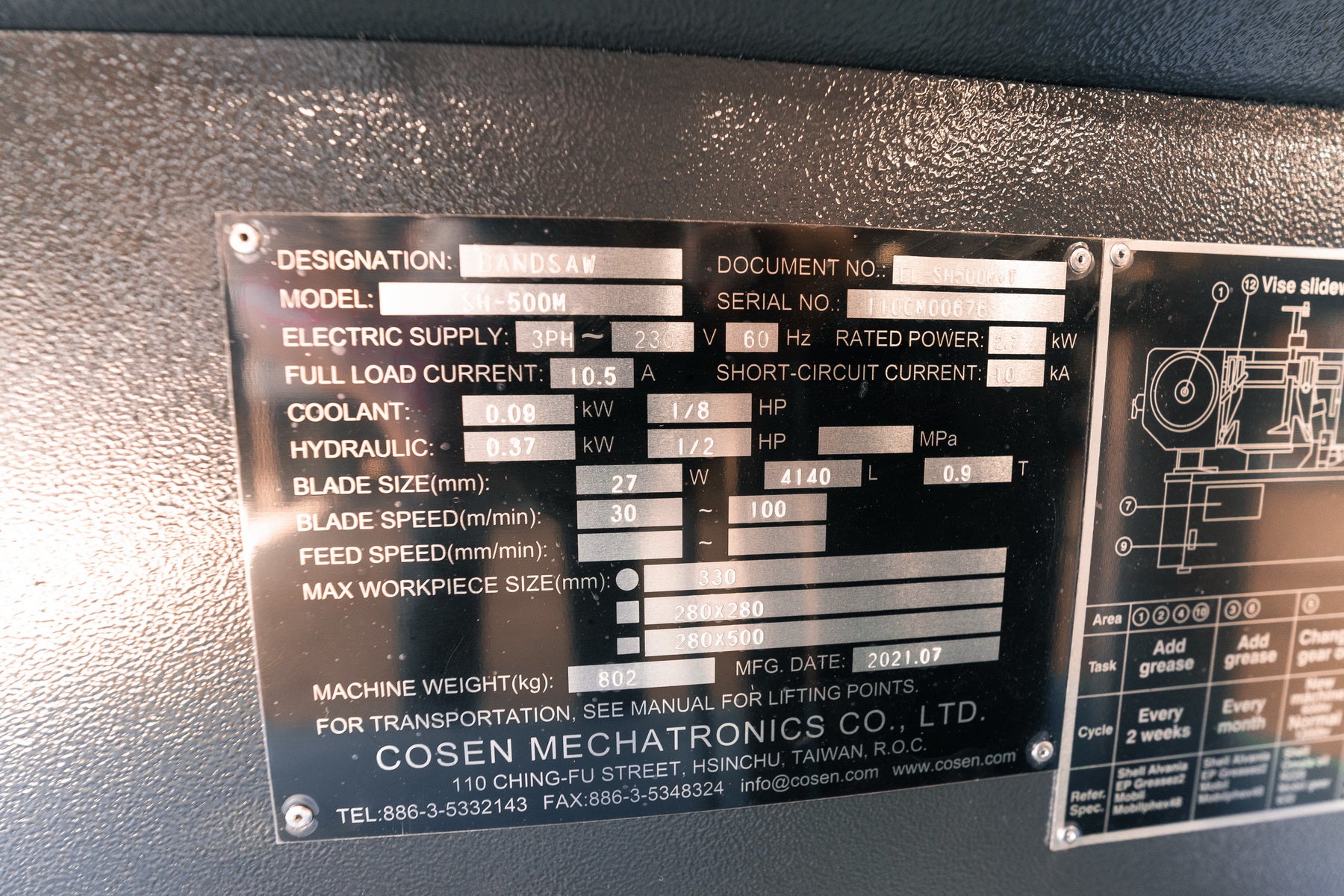

Specifications

• Capacity Angle: 0 | +45 | +60
• Round Capacity: 13" | 11.5" | 8.7"
• Rectangular Capacity: 11" x 19.7" | 11" x 11" | 11" x 7.9"

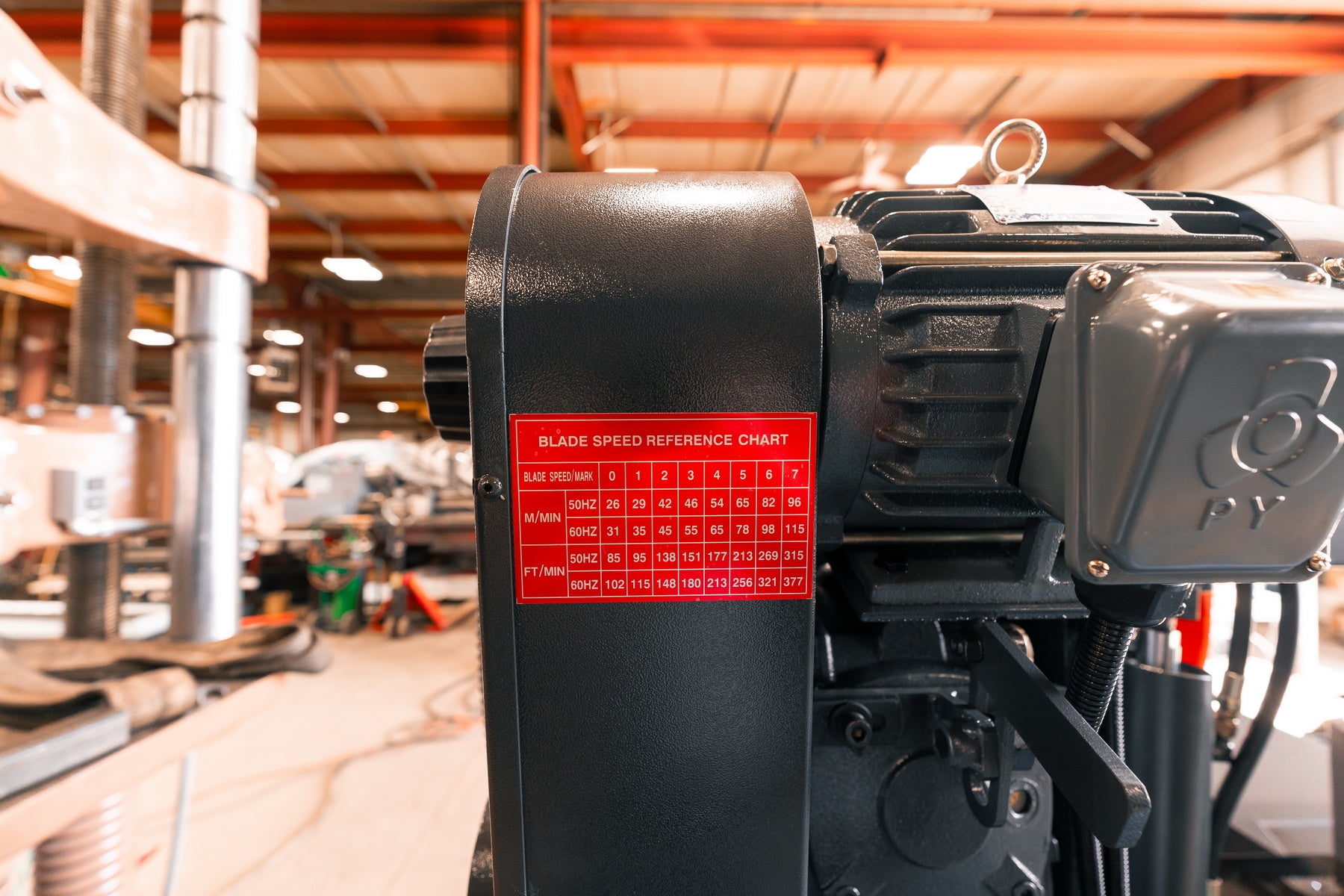

• Blade Speed: 60hz (75, 117, 166, 47 FPM)
• Blade Size (LxWxT): 13.7" x 1" x 0.035"

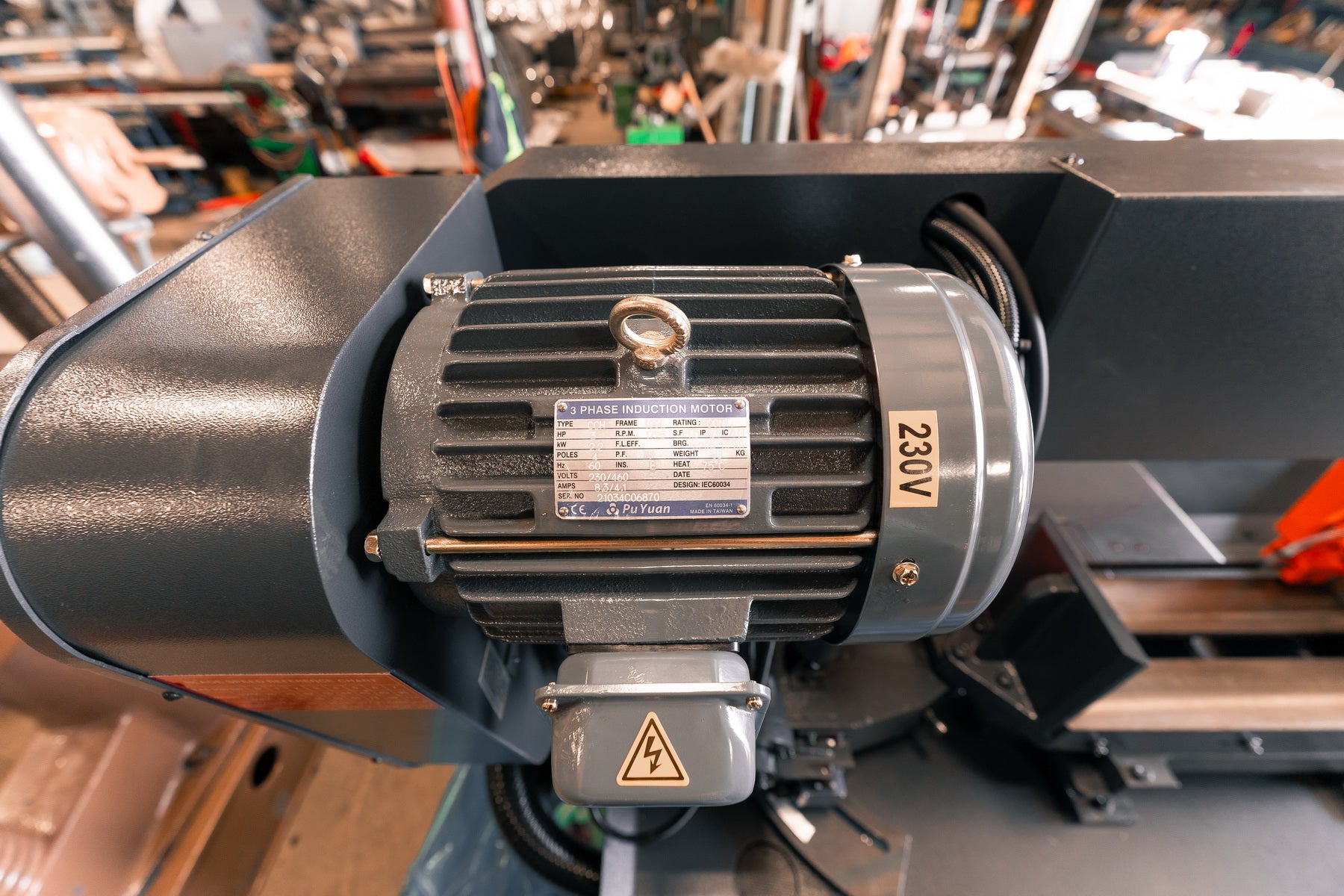

• Blade Motor: 3 HP
• Coolant Motor: 1/8 HP
• Work Bed Height: 32.3"
• Weight: 2.079 lbs
• Floor Space (LxWxH): 74" x 107" x 82"

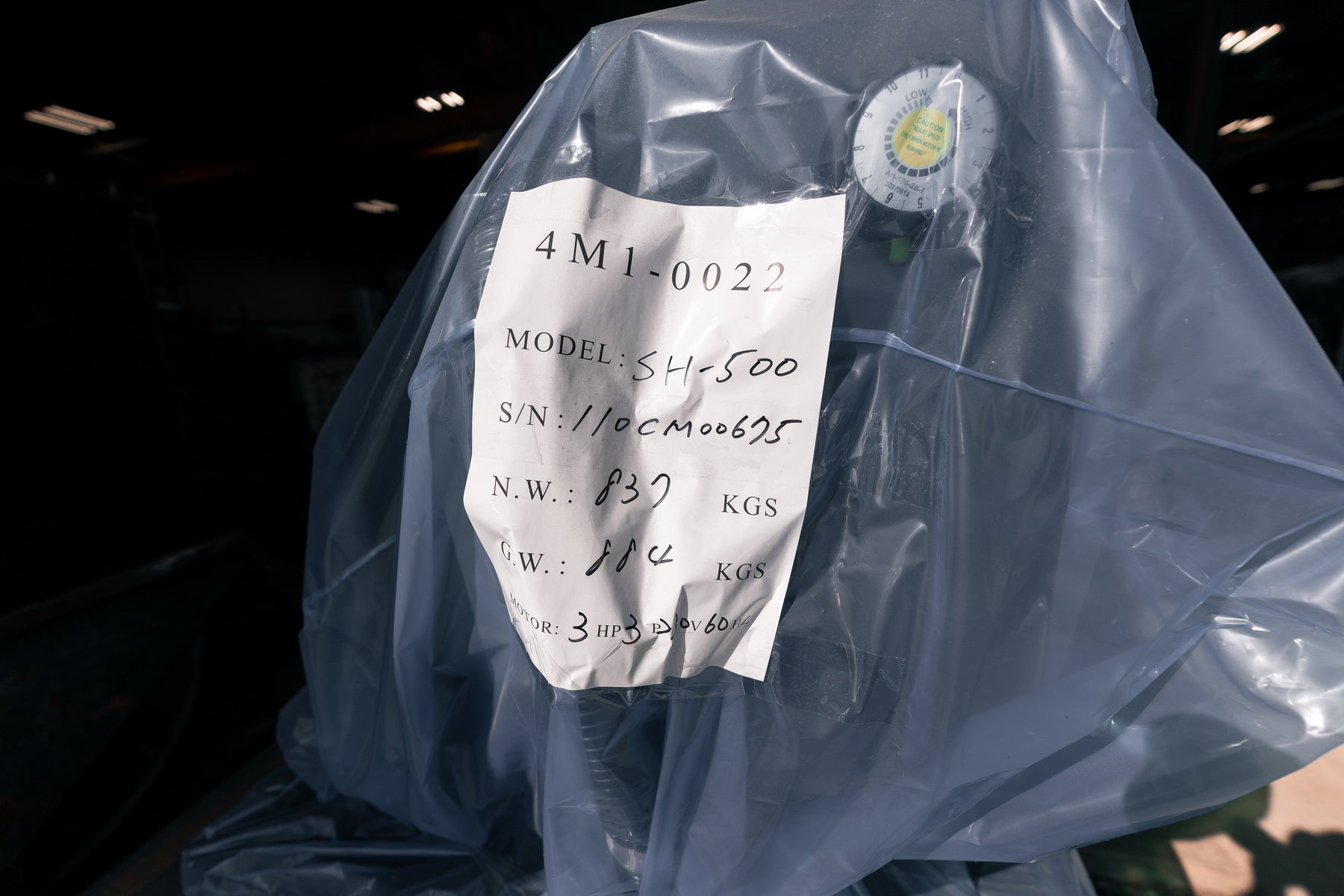

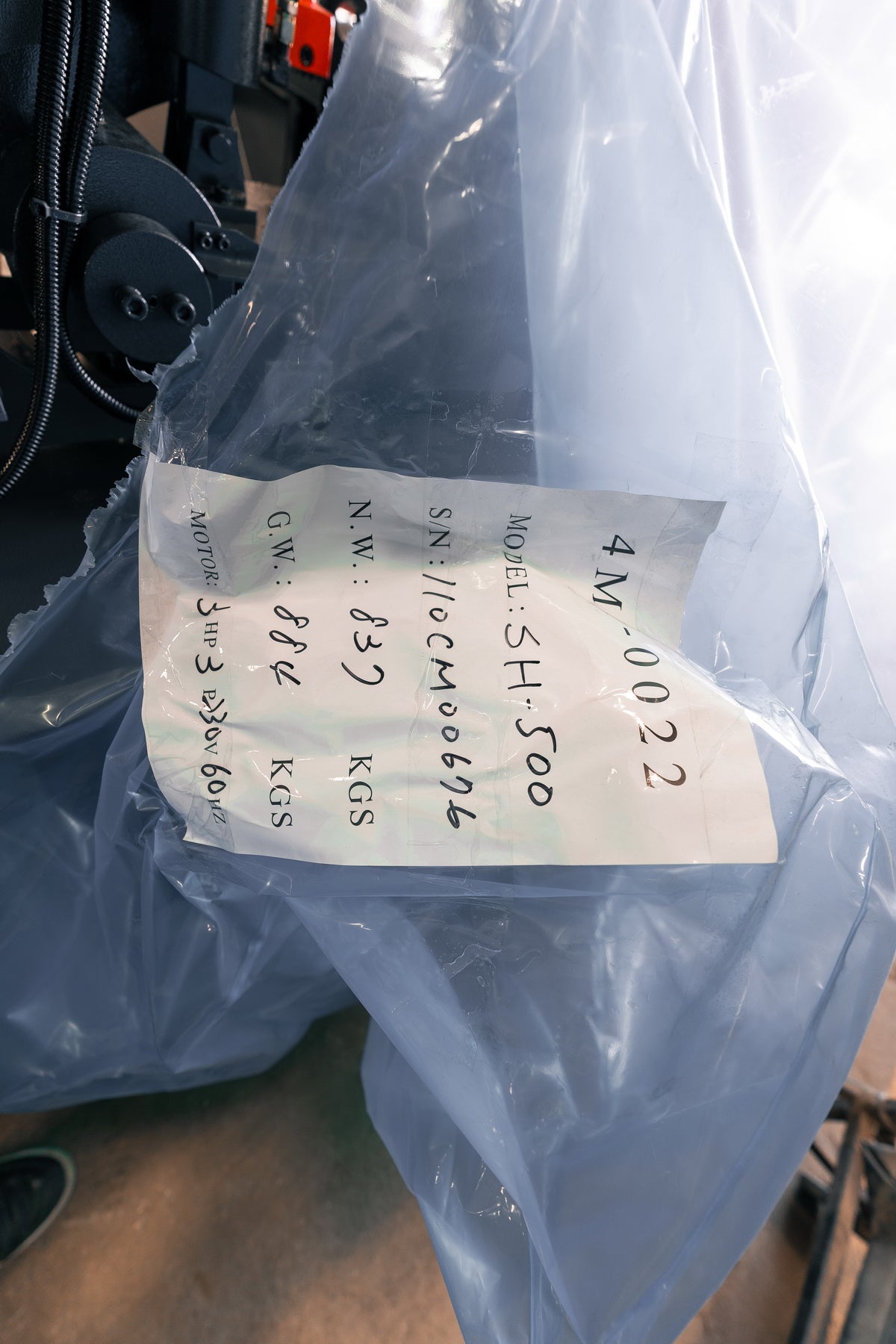

• ST: 535 (110CM00675)
